“Features:

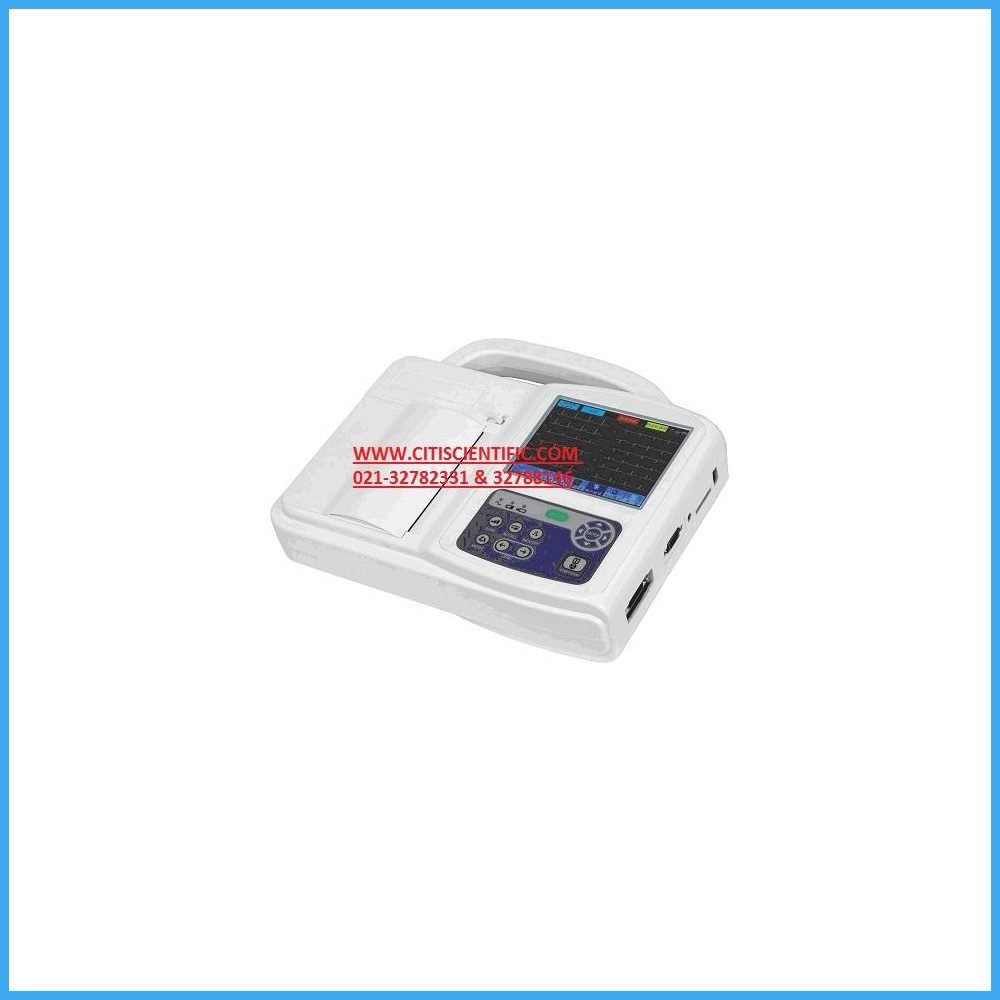

3 Lead Digital Electrocardiograph
• Lead: Standard 12 leads
• Acquisition: Simultaneous 12 leads
• Resolution: 12bit/1000Hz
• Operation mode: Manual/Auto/Analysis Modes
• Filter: AC. EMG Filter
• Drift filter: Anti-Drift System
• CMRR: ≥ 100dB, with AC Filter
• Input circuit: Floating, Protection against defibrillator effect
• Input circuit current: ≤ 0.1µ A
• Drift filter: Anti-Drift System
• CMRR: ≥ 100dB, with AC Filter
• Input circuit: Floating, Protection against defibrillator effect
• Input circuit current: ≤ 0.1µ A
• Input Impedance: >50MΩ
• Patient current leakage: <10µ A
• Calibrating voltage: 1mV± 3%
• Voltage tolerance: ± 500mV
• Time constant: >3.2s
• Frequent response: 0.05Hz~160Hz
• Noise level: ≤ 15µ Vp-p
• Threshold: ≤ 20µ V
• Paper speed: 25, 50mm/s (± 3%)
• Sensitivity: Auto, 2.5, 5, 10, 20, 40mm/mV
• Recorder: High resolution thermal printer
• Safety standard: GB9706.1-2007, IEC Class I, Type CF
“
