“Feature:
XSZ-107 Series of the microscope is composed by nine main component parts:
• 1. Stand: It’s the base bearing the total weight of microscope, which builds in the illumination system, electronic parts, and connecting control.
• 2. Arm: It’s the central part connecting the flame and every main component parts. It’s provided with coaxial coarse/fine focus system, with tension adjustable knob and limited stopper.
• 3. Rise and fall support: It connects with stage, arm, and condenser. Stage and condenser can move smoothly through it.
• 4. Eyepiece head: It can adjust interpapillary distance and visibility, and 45 inclined(Sliding style) or 30 inclined (Compensation free), in order to observe comfortably and conveniently, Binocular head, trinocular head & monocular head are optional.
• 5. Eyepiece: Using WF10X and WF16X (for choice) wide field eyepiece.
• 6. Nosepiece: It guarantees smooth rotation by quadruple revolving nosepiece.
• 7. Objective: 4X, 10X, 40X(S) and 100X(S, Oil) high-quality achromatic objectives make the imaging clearly.
• 8. Stage: Using double layer mechanical stage, it can be operated much easily by a coaxial knob in low position.
• 9. Condenser: ABBE condenser N.A.=1.25 with iris diaphragm, Kohler illumination is optional.
“

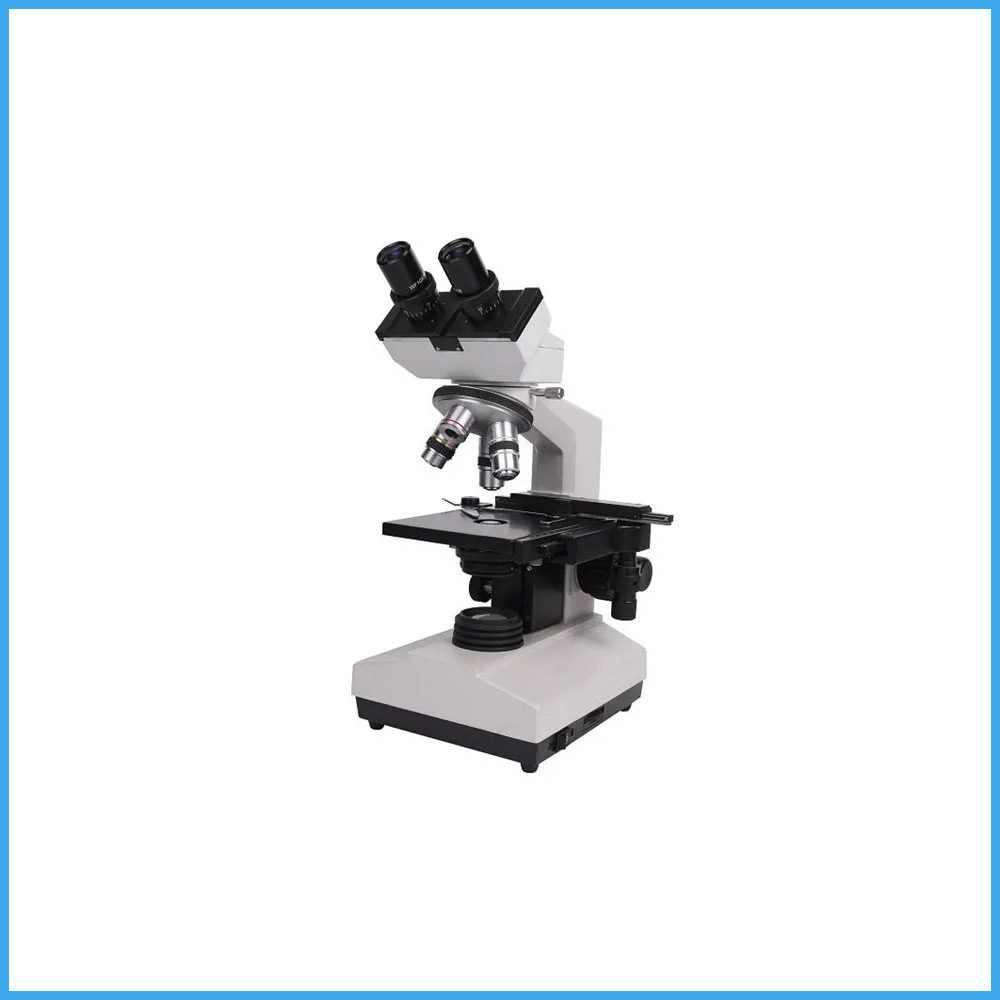

Binocloure Microscope 107BN
