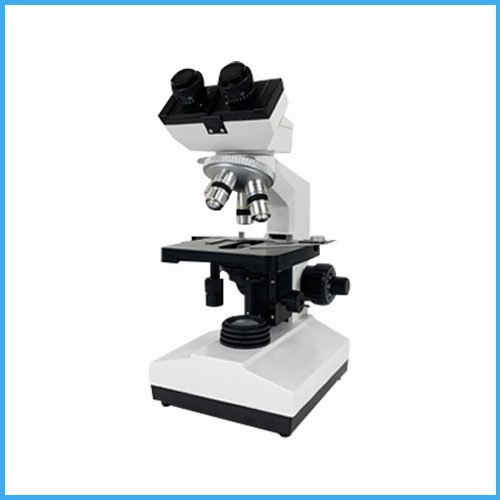

MICROSCOPE XSZ-107BN

PRODUCT DESCRIPTION:
The biological microscope from the XSZ-107 Series has a sturdy frame that accommodates monocular, binocular, or trinocular heads. The operation of the double-layer mechanical stage is made simple by the coaxial coarse/fine focus knob and the adjustable long handle.
Features:
The microscope’s XSZ-107 Series is made up of nine primary parts:

• Stand: The microscope’s base, which houses the electrical components, connecting control, and illumination system, supports the weight of the entire instrument.

• Arm: This main component connects the flame to all other main parts. It comes with a coaxial coarse/fine focus system, a limited stopper, and an adjustable tension knob.

• Support for rising and falling: It is attached to the arm, condenser, and stage. It allows the set and condenser to pass through with ease.

• Eyepiece head: For comfortable and convenient viewing, it can be adjusted for interpapillary distance and visibility. It can also be tilted 45 degrees (sliding style) or 30 degrees (compensation free). It is optional to have a monocular, trinocular, or binocular head.

• Eyepiece: Using the wide field eyepieces WF10X and WF16X (based on preference).

• Nosepiece: A quadruple-rotating nosepiece ensures smooth rotation.

• Objective: Excellent achromatic objectives with magnifications of 4X, 10X, 40X(S), and 100X(S, Oil) enable precise imaging.

• Stage: A coaxial knob in the low position makes it much easier to operate, thanks to the double-layer mechanical location.

• Condenser: iris diaphragm-equipped ABBE condenser N.A.=1.25, Kohler illumination optional.
