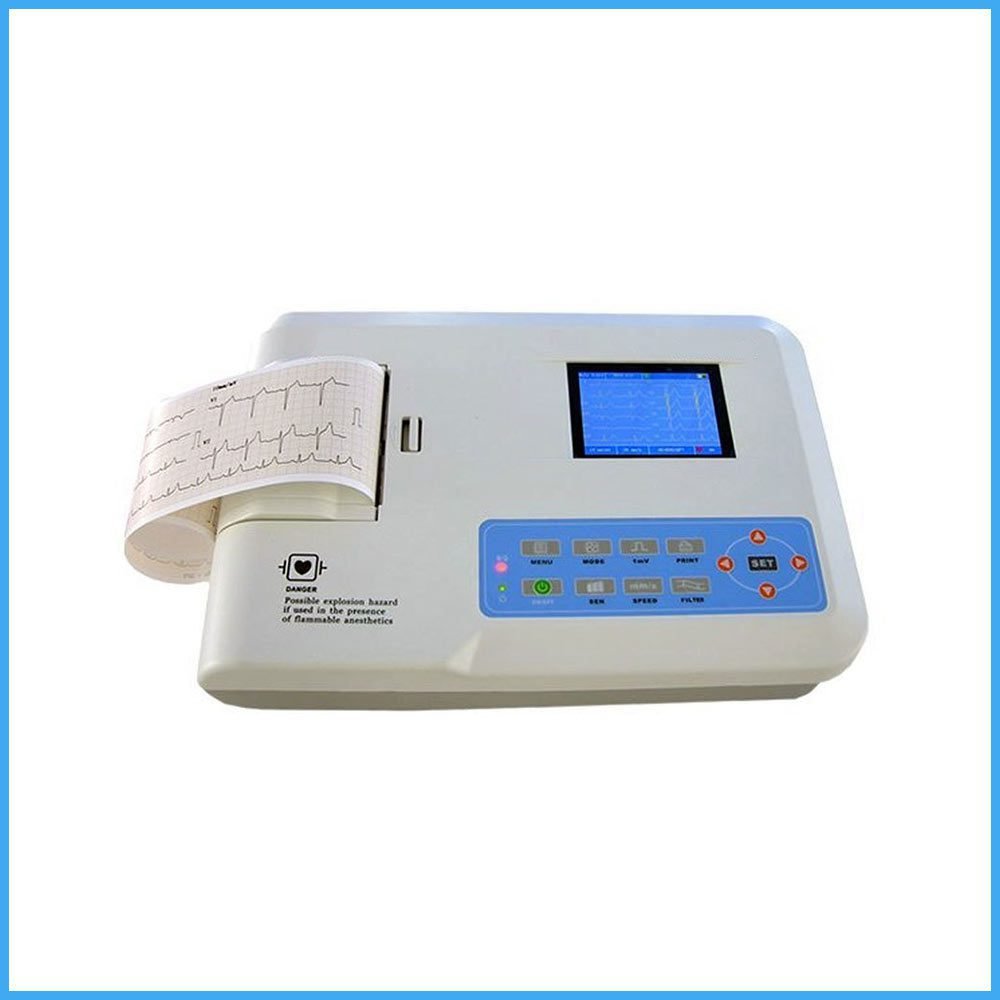

“Features:
2.7″” FSTN display shows the working status and ECG waveform.
■Output system:High-resolution thermal-array(32dots/mm),it needs not be adjusted.Recording frequency Response:Up to 150Hz.
■The device can record exact single ECG waveform and remark. The mark includes:lead sign,ensitivity,paper speed,filter state.
■ Under automatic mode,just press the button once,it starts record procedure,which can enhance your work efficiency
■The language of operation interface include include(Chinese,English,French,Italian,Turkish,Espanol,Deutsch,Russia)
■ The keyboard’s control is whole touch type,it’s convenient to operate.
■ Classification:Class:I,CF defibrillator proof
■ Power supply:AC/DC,rechargeable lithium battery inside.
■ This instrument can record 160 pieces of ECG waveform and 4hours, standby for 10 hours continually under the best DC state
■The figure of whole device is elegancy and gliding
■ According to defendence degree of deleterious fluid, this device is belong to common device.
■ Digital signal processor for effective inhibition of AC,EMG and DFT,receive the better ECG waveform.
■ According to the working mode class, this device belongs to continuous operation equipment.
Technical Specification:
Normal work environment
a. Environment temperature: +5℃~+35℃
b. Relative humidity: ≤80%
c. Atmospheric pressure: 86kPa~106kPa
Store and Transportation
a. Environment temperature: -10~55℃
b. Relative humidity: ≤95%
c. Atmospheric pressure: 50kPa~106kPa
ECG instrument input
■Input way: Floating and defibrilation protection
■Lead: Standard 12 leads
■Patient leak current: <10μA
■Sampling rate:1000Hz
■A/D change:10 Bit
■Frequency response: 0.05Hz~150Hz(-3dB,+0.4dB)
■Time constant: Time constant>3.2s
■CMRR: >60dB, >100dB( With AC filter)
■Enduring polarization voltage:±500mV
■Noise level: ≤15μVp-p
■EMG interference filter: 35Hz(-3dB)
■AC filter:50Hz/60Hz(≥20dB)
■Sensitivity choice: 5,10,20mm/mV, error:±5%.Standard sensitivity is 10mm/mV±0.2mm/mV
■Recording way: Thermal printing system
■Auto-record: according the the record format and auto-mode to set, auto leads-changing, auto measurement.
■Manual record: according the record format to record, manual leads-changing.
■Specification of recording paper:50mm(W) × 20mm(L)High-speed thermal paper
■Paper speed: 25mm/s,50mm/s,error:±5%
■Product safety type:Class I, type CF defibrillator proof
■Fuse Specification:2 pcs φ5*20mm AC time lag; T1.6AL250V
■Size:315mm(L)*215mm(W)*77mm(H)
■Net Weight:1.5kg
■Power supply: AC:100~240V,50/60 Hz
DC: 7.4V, 2000 mAh rechargeable lithium battery
Accessories:
ECG leads 1 set
Limb electrode clamp 1 set
Chest electrode 1 set
Power connection 1 piece
Recording paper 1 piece
Ground wire 1 set
User manual 1 piece
Certification
CE, CCC
“
