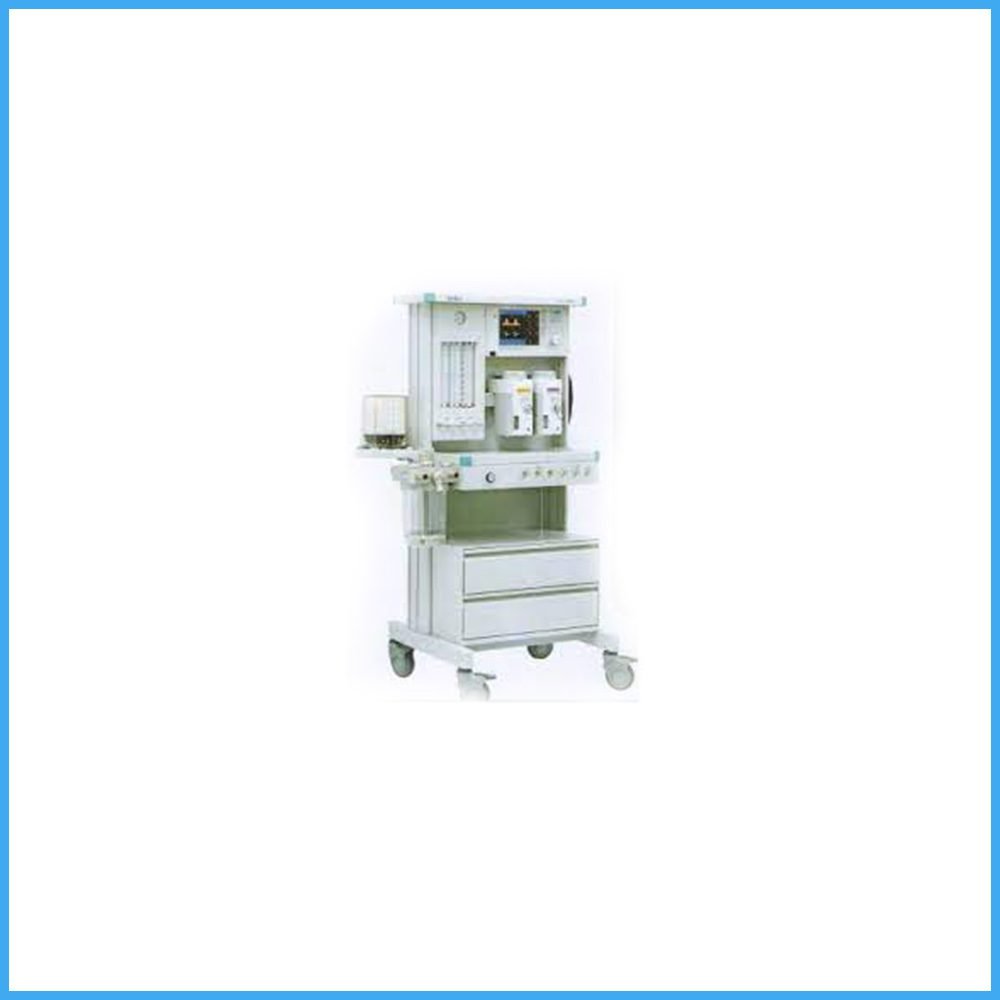

Anesthesia System TK 7700G Tenko

“Features:
• Patient type : Adult , pediatric
• Driven mode：Pneumatically driven electronically controlled
• Mode: Semi-open, Semi-closed or closed system
• Main unit
• Circle absorber: compact circle absorber
• Bellow:0-1600ml
• Gauge: 4 units, two is for N2O, two is for O2.
• Flowmeter（lighting design）
• O2,N2O four-tube flowmeter
• O2 flowmeter：0L/min—10L/min
• N2O flowmeter：0L/min—10L/min
• O2 and N2O Linkage Device
• Adjust O2 and N2O in proportion(O2 concentration is not lower than 25%)
• Fast for oxygen：35L/min—75L/min
• Air source pressure
• O2：0.27MPa—0.55MPa
• N2O：0.27MPa—0.55MPa
• Anesthetic vaporizer: two vaporizers
• Halothane vaporizer, Enflurane Vaporizer, Isoflurane Vaporizer, and so on.
• PENLON vaporizer imported from UK is available
• Power supply:
• 110V±10%，60Hz±1Hz
• Internal battery: DC12V( over 4 hours)
• Power consumption：≤50W
• Dimension：920W×645L×1470H（mm）
• Net weight：120Kg
• Respiration Pattern：IPPV，VCV，PCV，SIMV，SIGH，MANUAL，STANDBY，
• DEMO
• Display:10.4 TFT color screen
• Waveform: P-t, F-t
• Tidal Volume：20ml to 1600ml
• Respiratory frequency：1 to 65bpm
“
